acv ck-mb6.2 lautsprecher system dls performa
Performance 6.5inch 2-way Component System with Separate
X-Over 80 WRMS DLS

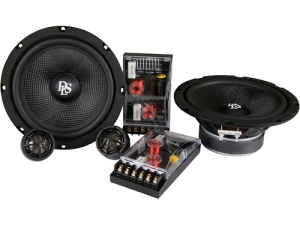

Performance series MB6.2 is a 16,5cm (6,5 ) 2-way component
kit with a separate 25 mm tweeter.
Install the tweeter on the dashboard or recessed in the
door, all mounting parts are included.
A great sounding kit for a good price.
The bass driver has a fibre glass cone and the 90 mm
powerful magnet guarantees a good bass control.
Grilles are included.
Small filter boxes
Specifications
Woofer size 16,5 cm (6,5 )
Tweeter 25 mm soft dome tweeter, M25
Power handling capacity 80 W RMS / 100 W max, 200 Watt
peak power
Impedance 4 ohm
Frequency range 50 - 20.000 Hz
Crossover point (Hz) 5500 Hz
Sensitivity 87 dB (1W/1m)
Outer diameter of woofer 165 mm (6,5 )
Magnet size 90 mm (3,54 )
Cone material Fibre glass
Mounting depth 65mm ( 2,56 )
Crossover Separate filter box
Mounting hole 145 mm (5,75 )
Size of filter box 120 x 65 x 33 mm
EAN Bar code 7331644820604
X-Over 80 WRMS DLS
Performance series MB6.2 is a 16,5cm (6,5 ) 2-way component
kit with a separate 25 mm tweeter.
Install the tweeter on the dashboard or recessed in the
door, all mounting parts are included.
A great sounding kit for a good price.
The bass driver has a fibre glass cone and the 90 mm
powerful magnet guarantees a good bass control.
Grilles are included.
Small filter boxes
Specifications
Woofer size 16,5 cm (6,5 )
Tweeter 25 mm soft dome tweeter, M25
Power handling capacity 80 W RMS / 100 W max, 200 Watt
peak power
Impedance 4 ohm
Frequency range 50 - 20.000 Hz
Crossover point (Hz) 5500 Hz
Sensitivity 87 dB (1W/1m)
Outer diameter of woofer 165 mm (6,5 )
Magnet size 90 mm (3,54 )
Cone material Fibre glass
Mounting depth 65mm ( 2,56 )
Crossover Separate filter box
Mounting hole 145 mm (5,75 )
Size of filter box 120 x 65 x 33 mm
EAN Bar code 7331644820604
