acv ck-mc6.2 lautsprecher system dls performa
Performance 6.5inch 2-way Component System with Separate
X-Over 80 WRMS

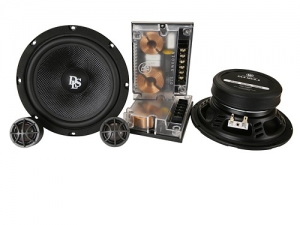

Performance series MC6.2 is a 16,5cm (6,5 ) 2-way component
kit with a separate 25 mm tweeter with copper cups for
improved treble sound.
Install the tweeter on the dashboard or recessed in the
door, all mounting parts are included.
The bass driver has a fibre glass cone with rubber edge and
a 100 mm powerful magnet that guarantees a good bass
control.
Grilles are included.
Filter boxes with only the best components
Specifications
Woofer size 16,5 cm (6,5 )
Tweeter RC25, 25 mm textile dome tweeter with copper rings
Power handling capacity 80 W RMS / 100 W max, 200 Watt peak
power
Impedance 4 ohm
Frequency range 50 - 25.000 Hz
Crossover point (Hz) 4500 Hz
Sensitivity 87 dB (1W/1m)
Outer diameter of woofer 165 mm (6,5 )
Cone material Fibre glass with rubber edge
Magnet size 100 mm (4 )
Mounting depth 67mm ( 2,64 )
Crossover Filter box with HP12dB, LP 12 dB slope
Mounting hole 145 mm (5,75 )
Size of filter box 125 x 95 x 34 mm
EAN Bar code 7331644821106
X-Over 80 WRMS
Performance series MC6.2 is a 16,5cm (6,5 ) 2-way component
kit with a separate 25 mm tweeter with copper cups for
improved treble sound.
Install the tweeter on the dashboard or recessed in the
door, all mounting parts are included.
The bass driver has a fibre glass cone with rubber edge and
a 100 mm powerful magnet that guarantees a good bass
control.
Grilles are included.
Filter boxes with only the best components
Specifications
Woofer size 16,5 cm (6,5 )
Tweeter RC25, 25 mm textile dome tweeter with copper rings
Power handling capacity 80 W RMS / 100 W max, 200 Watt peak
power
Impedance 4 ohm
Frequency range 50 - 25.000 Hz
Crossover point (Hz) 4500 Hz
Sensitivity 87 dB (1W/1m)
Outer diameter of woofer 165 mm (6,5 )
Cone material Fibre glass with rubber edge
Magnet size 100 mm (4 )
Mounting depth 67mm ( 2,64 )
Crossover Filter box with HP12dB, LP 12 dB slope
Mounting hole 145 mm (5,75 )
Size of filter box 125 x 95 x 34 mm
EAN Bar code 7331644821106
