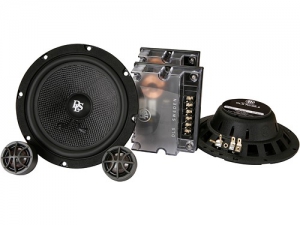

Reference 6.5 inch 2-way Component System with Separate
X-Over 50 WRMS
Reference series RCS6.2 is a 16,5 cm (6,5 ) 2-way
component. The cone is made of wowen glass fibre with
rubber surround giving this speaker set a good sound.

A small installation depth (45 mm)makes them fit most
vehicles.

Filter boxes with selectable tweeter level.

25 mm silk dome tweeter with copper rings.

Grilles are included.

Specifications

Woofer size 16,5 cm (6,5 )

Tweeter RC25, 25 mm (1 ) silk dome tweeter with copper rings

Power handling capacity 50 W RMS / 90 W max / 180 W peak
power

Impedance 4 ohm

Frequency range 55 - 22.000 Hz

Sensitivity 86 dB (1W/1m)

Outer diameter of woofer 165 mm (6,5 )

Cone material Wowen glass fibres

Magnet size 80 mm (3,15 ), hybrid FE / Nd

Crossover Box filter with 6/12 dB slope (LP/HP)

Crossover point (Hz) 5500 Hz

Size of filter box 125 x 95 x 34 mm

Mounting depth 45 mm ( 1,77 )

Mounting hole 146 mm (5,75 )

T/S parameters

single V/C

Fs Hz Re Ohm Qms

Vas liter Vas Cuft Qes

Qts Sd cm BL

EAN Bar code 7331644821601
